    IEC60695 Comparative Tracking Index Tester

    Ask Lasest Price
    Brand Name : SKYLINE
    Model Number : SL-E10
    Certification : CE
    Price : neogitable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1 unit / month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

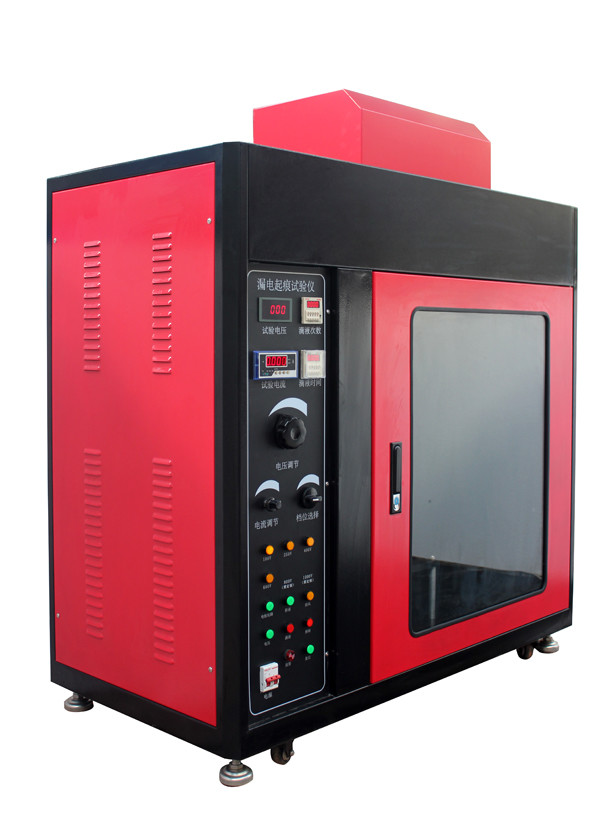

    IEC60695 Comparative Tracking Index Tester

    IEC60695 Tracking Index Tester for Led luminaires Testing and Electronic Products


    Product information

    Tracking Index Tester is based on IEC60695, GB4207 / IEC60112 and other standards designed and manufactured special detection equipment. It is suitable for the determination of solid insulation material under the wet condition compared with the tracking index and the tracking index of the tracking resistance. It is simple, accurate, reliable and practical.


    Technical Parameters

    Electrode MaterialsThe electrode caput of brass-platinum
    Electrode Distance4.0mm±0.1mm,60±5°angle
    Test Voltage100~600V adjustable, displayed value: r.m.s

    Test Current


    Current limiting 1A±0.1A adjustable,
    displayed value:r.m.s, tolerance of 1.5%

    Electrode Dimensions


    width: 5mm±0.1mm,
    thickness: 2mm±0.1mm,
    length >12mm,
    end chisel-edge angle : 30°±2°,platinum.
    Electrode Pressure1.00N±0.05N
    Dripping Nozzleouter diameter: 0.9mm~1.2mm for solution A
    0.9mm~3.45mm for solution B
    Dripping Interval

    0-99 seconds (adjustable),the time for 44-55/1cm3(adjustable)

    drops to fall on the specimen shall be (30±2)min.

    Heigh Drops30-40mm±5mm(adjustable)
    ControlUsing single chip microcomputer + touch screen control
    Chamber volume>0.5m³, black interior
    Outer DimensionsW*D*H=1100mm*700mm*1300mm
    Power Supply800VA ,220V, 48-60Hz

    IEC60695 Comparative Tracking Index Tester
