    Nickel Plated Steel Ball Pressure Test Apparatus IEC 600695-10-2 For Non Metallic

    Ask Lasest Price
    Brand Name : SKYLINE
    Model Number : SL-SE01
    Certification : Calibration Certificate
    Price : Negoitable
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 1 pcs/ month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    Nickel Plated Steel Ball Pressure Test Apparatus IEC 600695-10-2 For Non Metallic

    Nickel Plated Steel Ball Pressure Test Apparatus IEC 600695-10-2 For Non Metallic


    Application
    Ball Pressure Test for Fire Hazard testing is used to test the heat resistance of non-metallic materials and solid electrical insulating materials except ceramics. Enclosures and other external parts of insulating material are subjected to the test. The ball pressure apparatus is designed to verify the quality and safety characteristics of products, as required by national & international standards.

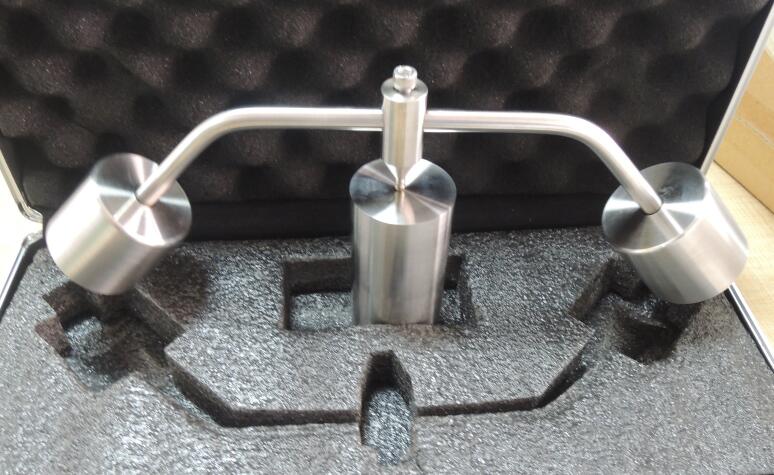

    Construction

    a.Ball holder with bore and clamping screw for the bow
    b.Precision 5mm pressure ball

    c.Thermocouple for the test stand

    d. Nickel plated steel materials for good thermal stability


    Technical parameters
    a.Ball diameter 5mm (R2.5mm)

    b.Total test pressure 20N±0.2N
    c.Samples bearing diameter 50mm, length 100mm, solid stainless steel cylinder
    d.Production of materials all used stainless steel materials
    e.Remark Ball pressure instrument takes another a hot box (oven) supporting the use.


    Testing standards

    IEC60238IEC60309
    IEC60320IEC60335
    IEC60598IEC60601
    IEC60669IEC60670
    IEC60670IEC60884
    IEC60950IEC60998
    IEC60998IEC61558
