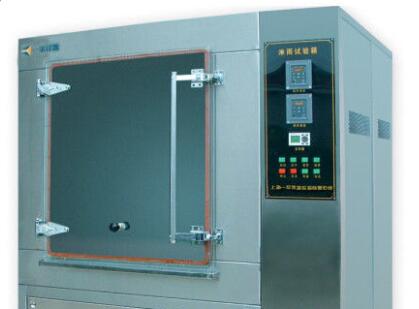

    Box Type Environmental Test Chamber , IEC60529 IPX3 IPX4 Oscillating Tubes Rain Test Equipment

    Ask Lasest Price
    Brand Name : SKYLINE
    Model Number : SL-IPX3X4 A
    Certification : CE
    Price : negoiated
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10 unit / month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Box Type Environmental Test Chamber , IEC60529 IPX3 IPX4 Oscillating Tubes Rain Test Equipment

    Box Type Environmental Test Chamber , IEC60529 IPX3 IPX4 Oscillating Tubes Rain Test Equipment


    Application of Environment Test Chamber:

    The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

    Features :

    1.Boy type, circulating water

    2.Accurate flow adjustable

    3.Sample electrifying test

    4.Connected WIFI operation

    5.Imported electrical components


    Main Features:


    1
    Swing pipe size (mm)
    R200
    R400
    R600
    2
    External dimensions (mm)
    L500*D500*H500mm
    L900*D900*H900mm
    L1300*D1300*H1300mm
    3
    Outer size(mm)
    L1000*D680*H1440mm
    L1400*D1080*H1900mm
    L1740*D1480*H1950mm
    4
    Flow (L / mm))
    0-1L/Min
    0-2L/Min
    0-3L/Min
    5
    Turntable Size (mm)
    ¢200
    ¢400(can add ¢200)
    ¢600(can add ¢400,¢200)
    6
    Turntable height adjustable range
    150-250 mm
    350-600mm
    550-1000mm
    7
    Spray aperture diameter (mm)
    0.4
    8
    swing pipe inner diameter(mm)
    15
    9
    Swing angle
    120°(IPX3), 350°(IPX4), or customize
    10
    Swing speed
    120°(to and fro) 4S,360°(to and fro)
    12S(accurate control)or customize
    11
    Swing pipe material
    SUS304 stainless steel
    12
    Turntable speed
    1-5r/min(accurate control)
    13
    protective device
    Leakage, water shortage, short circuit
    14
    Power supply (V)
    200V
    15
    Power(KW)
    1
    16
    Standards compliant
    IEC60529:1989+A1:1999(IPX3 IPX4)
