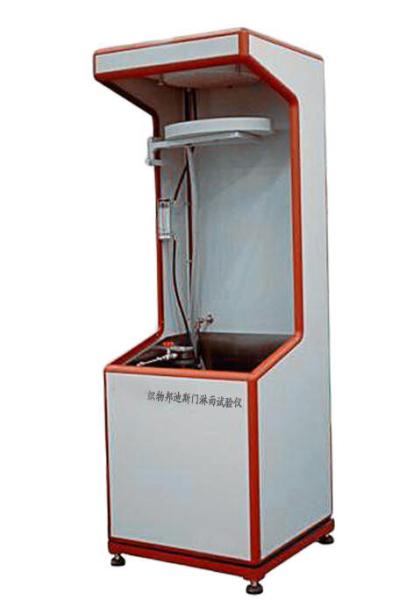

Bundesmann Water Permeability Test Equipment Centrifuge Speed 700rpm

Product Details

The Bundesmann determines the resistance to simulated rain for fabrics that are being contacted.

Standards
BS EN29865,DIN53888,JIS L1092,ISO9865,GB/T14577-1993 and so on.

Application

Bundesmann Water Repellency Tester, which detects the water repellency of artificial rain to the fabric during friction and rotation. The amount of water passing through the fabric can be obtained by measuring the weight change before and after the test.

Features

1. Color touch screen display control, menu operation mode;

2. Timing function, when the timing arrives, it will automatically stop and be notified by a buzzer;

3. The fuselage is made of stainless steel, which is rust-proof and corrosion-resistant;

4. The core control components use ST's 32-bit multi-function motherboard;

5. The instrument is equipped with a level detection device;

6. The instrument is supported by a universal wheel, which is convenient for moving and fixing the equipment;

7. The instrument is designed as a desktop computer, with stable operation and low noise;

8. Precision motor control drive, short response time, no overshoot, uniform speed;

9. The amount of water spraying and the spraying range can be customized according to customer needs;

10. The panel is made of special aluminum material, with metal buttons, sensitive operation and not easy to damage;

11. The instrument contains Chinese and English interfaces, which is convenient for foreign customers to inspect;

Technical Parameters

• Drip formers: 300 precision stainless steel drip formers. Evenly distributed in the plane of a diameter of 406mm
• Rainfall area: about 1300cm²
• Rainfall (per 100 cm2): 100～300ml/min (adjustable)
• Test piece specification: diameter 140mm
• Diameter of test sample cup: 100mm
• Test sample cup installation angle: 15°
• Test sample cup rotation speed: 6r/min
• Specification of cross-shaped wiper: 48×5mm
• Wiper rotation speed: about 20r/min
• Wiper pressure on the fabric: about 250cN
• Drip former distance from the test sample distance: 1.5 meters
• Dimensions: about 750*750*2400(L*W*H)
• Working voltage: AC220V 50Hz; 400W
• Weight: about 70Kg

configuration list

• 1 host
• 1 product certificate
• Product instruction manual 1 copy
• 1 delivery note
• 1 acceptance sheet
• 1 Product gallery
