    EN ISO 20344 Shoe Insulation Testing Machine CE

    Ask Lasest Price
    Brand Name : SKYLINE
    Model Number : SL-L33
    Certification : CE
    Price : negoitable
    Payment Terms : Western Union, MoneyGram, T/T
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

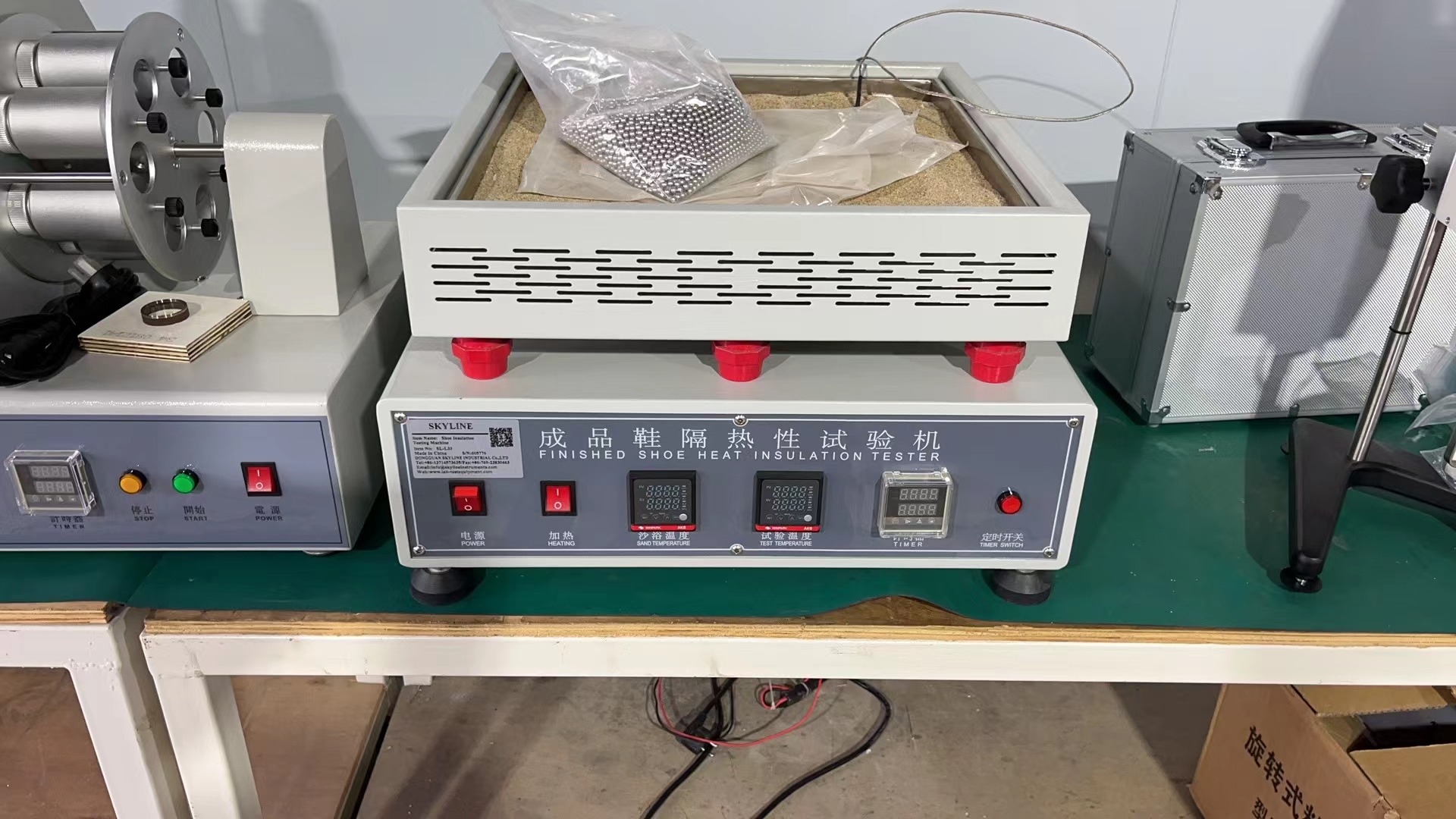

    EN ISO 20344 Shoe Insulation Testing Machine CE


    SL-L33 Shoe Insulation Testing Machine / Safety Shoes Sole Insulation Testing Machine / Sole Insulation Testing Machine


    Use
    This instrument is a testing machine for testing the thermal insulation properties of the whole shoe.
    After the sample shoes are placed on a hot plate of a specified temperature for a certain period of time, the temperature rise of the inner surface of the sole is checked.


    Standards compliant
    ISO-20344

    Principle
    The sample shoes are placed in a continuously heated sand pool. When the temperature of the sand pool is heated from room temperature to the test temperature, the change of the internal temperature of the sample shoe is recorded, and then the test temperature is maintained, the test is continued until the test time, and then the shoes are inspected. Functional damage


    Technical parameters

    Sand size(40± 2) cm × (40± 2) cm at least 5 cm
    Sand volume5000± 250cm3
    Sand size0.3~1.0mm
    Baking tray temperaturenormal temperature ~150 ° ± 5 ° or 250 ° ± 5 °
    Heating power2500 ± 250W or more
    Volume (approx)50 × 50 × 32cm
    Weight (approx)35kg
    Power supply1∮ AC 220V


    Steel ball diameter 5mm, total mass (4 000±40)g, one temperature recorder
