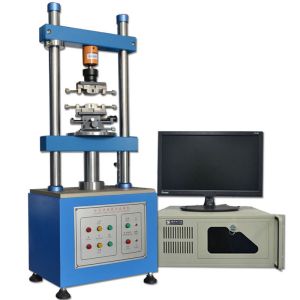

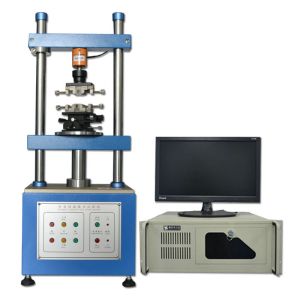

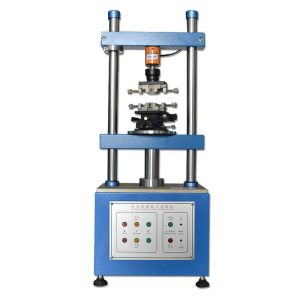

Insertion And Extraction Force Test Machine

Product introduction

Insertion Force Testing Machine is suitable for connectors insertion and withdrawal force tests, the use of unique device automatically matched to find the heart of a variety of special fixture connector, the plug can be completely accurate force results. All the testing informations are setting by the computer and it can automatically store testing condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.

Features

1.Printing and storing graphs (insertion and removal displacement graph, life curve graph, inspection report).
2. Test data is stored in hard disk (each data can be stored unlimited times).
3. Test conditions are set in writing by the computer, convenient and fast (including insertion and extraction stroke, speed, pause time, etc.). etc.)
4.Test report can be transferred to Excel for editing.

Test items
Connector plug hole test.
Test row connector plug.
Life test connector plug.
Single-Pin connector and the plastic retention test.
(Retention Force) connector Normal Force test.
Simultaneously with the contact resistance machines online. (Optional)
Various compression, tensile breaking strength test. (Dynamic impedance test system), etc.

Technical parameters
