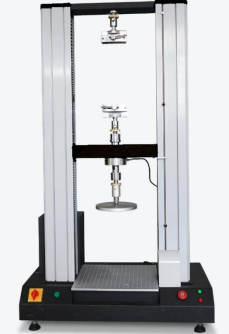

Product Information
Mainly applicable to soft foam polymerization and materials such
as: sponge, foam isobaric hardness in the national standard
requirements of the A method, B method, C method and other test
conditions for standard size sponge, foam and other samples for
standard testing, determination of sponge, foam and other materials
hardness test. By changing different test fixtures, it can be used
to test the tensile strength, elongation at break and tearing
property of soft sponge foam polymer materials
Test Standard
ASTM D 3574 , ISO 1798 , ISO 2439
Technical parameters
| Maximum test force | 5KN |
| Accuracy level | 1 |
| the allowable error limit of the test force | within ±1% of the indication value |
| load measurement range | full scale 2% ~ 100%FS |
| the resolution of the test force | 1/50000 of the maximum test force |
| The limit error of displacement | within ±0.5% of the indication value |
| displacement resolution | 0.01mm |
| effective stretching space distance | 600mm |
| effective test width distance | 500MM |
| Test speed | 0.01~500mm/min (can be adjusted) |
| Force reading | kgf, Ibf, N, KN, T etc |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm,
N/mm2) etc… |
| Control system | PC Software and interactive human-computer dialogue operation
interface under WINDOWS operating environment |
| Test Method | Tensile Test, Tear Test, Compression Hardness Test, IFD Test, CLD
Test |
Feature
01, automatic shutdown: after the sample is damaged, the moving
beam automatically stops moving (or automatically returns to the
initial position,
02, automatic shift: according to the size of the test force
automatically switch to the appropriate range to ensure the
accuracy of the measurement data
03, condition module: test conditions and sample raw data can be
established in the form of their own standard module storage;
Convenient for users to call and view, save the test time
04, automatic transmission: the displacement speed or loading speed
of the test process can be automatically completed according to the
pre-prepared and set program or can be manually changed
05, automatic process system: according to the test requirements,
users can easily establish their own test template (method, easy to
call twice, can realize the test loading speed, stress, strain
closed-loop test control
06, automatic saving: at the end of the test, the test data and
curves are automatically saved by the computer to eliminate data
loss caused by forgetting to save the disk
07, test process: test process and measurement, display, analysis,
etc. are completed by microcomputer
08, batch test: for the same parameters of the sample, a batch of
tests can be completed in sequence after setting
09, test software: Chinese Windows user interface, easy to operate
10, display mode: data and curve dynamic display with the test
process
11, curve traversal: After the completion of the test, the curve
can be amplified and analyzed, and the data corresponding to each
point on the test curve can be found with the mouse
12. Test report: It can be edited and printed according to user
requirements
13, limit protection: with program-controlled and mechanical
two-level limit protection
14, overload protection: when the load exceeds the rated value 3 ~
5%, automatic stop
15, the report shows: automatic and manual two modes to obtain a
variety of test results, automatically form a report, so that the
data analysis process becomes simple and convenient for users
16, add test method: The user can follow the test requirements, add
test method
