IEC60695 Glow Wire Flammability Temperature Tester, Glow Wire
Combustion Resistance Testing Machine, Glow Wire Burning T
Digital Electronic Testing Equipment Glow Wire Tester
Product description
This instrument is designed and manufactured according to the
requirements of "Glowing Wire Test Method" in IEC60695,
GB5169.10-11 and GB4706.1. It is suitable for electrical and
electronic products, household appliances and their materials for
ignition hazard test, simulating hot components or overload
resistors. Thermal stress caused by a heat source or ignition
source in a short time. The instrument adopts galvanized sheet
cold-rolling electrostatic spraying and adopts full-color
seven-inch touch operation display. The test is easy and efficient,
easy to operate and stable in performance. It is suitable for fire
resistance test at all levels of quality inspection departments and
related enterprises.
Product Features
1. Adopt single-chip microcomputer + touch screen control,
high-precision temperature meter independent electronic control
system to solve the problem that the actual conversion accuracy of
digital system of PLC system can not be achieved, and improve the
anti-interference ability. Microcomputer control is more precise.
2. Start, timing, exhaust, lighting, and heating are all
implemented on the touch screen; after a group of tests, the device
automatically jumps out and saves, just edit the saved name; all
saved data can be queried in historical data.
3. Seven inch color touch screen
4. Intelligent 7mm limit adjustment

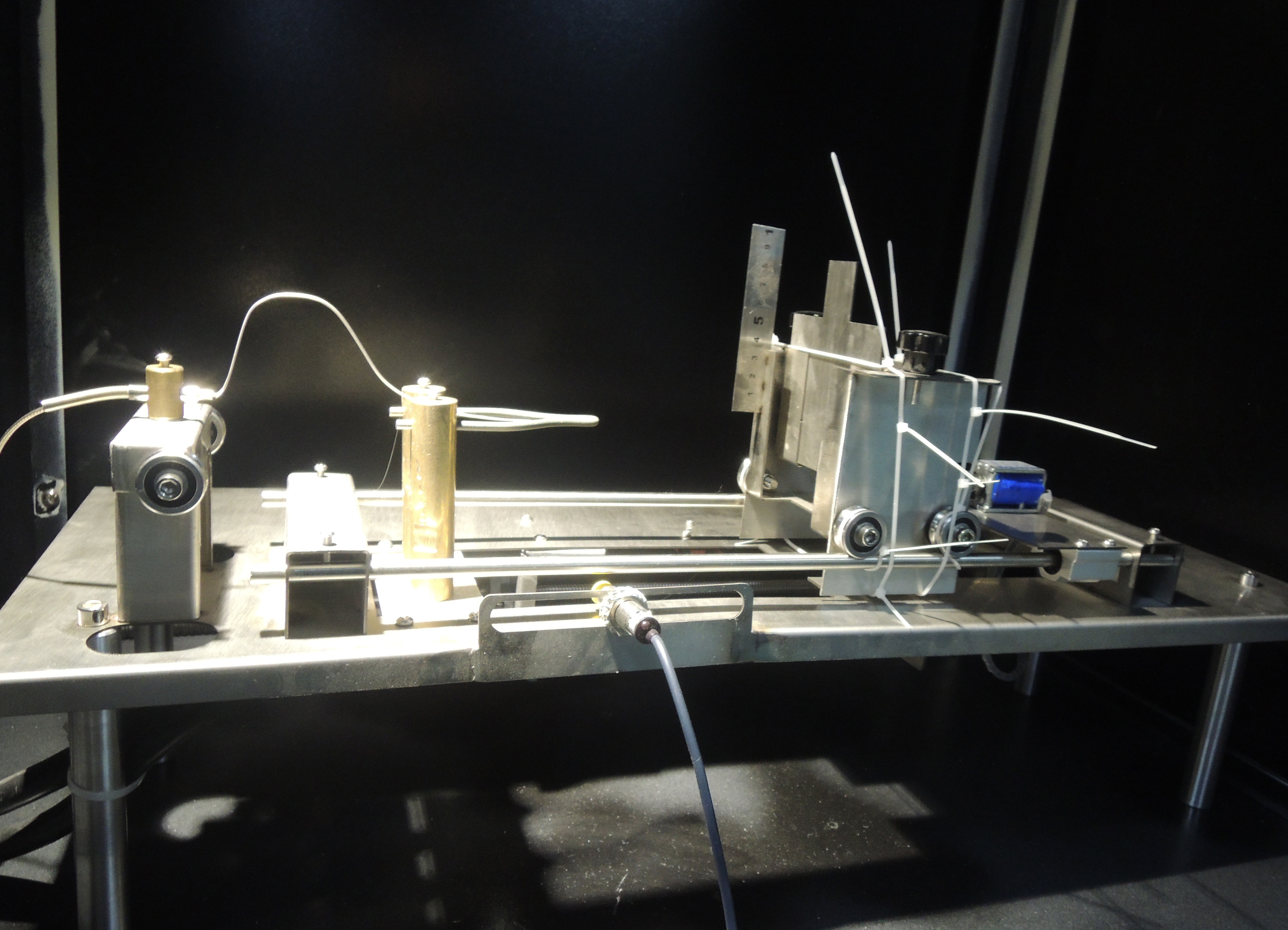

5. Fixture adapts to various shape and size samples
6. Free movement in X and Z directions for convenient sample
positioning
7. With one-button operation, one button completes the whole test
process during the test, without switching between complicated
buttons
8. The sample car adopts a fully enclosed structure and will not
roll over.
9. Equipped with flame height gauge for easy viewing of flame
height
Main Technical Parameters
1. The red line photoelectric stop switch is used to make the limit
more precise.
2. The thyristor controls the temperature regulation system to make
the temperature adjustment more accurate.
3. Time and temperature digital display, convenient observation and
record
4. Test background: black background, background illumination ≤ 20
Lux.
5. Test process: automatic control of test procedures, independent
ventilation
6. Combustion test area volume: > 0.5 cubic, length * width *
height about 900mm × 590mm × 1050mm, (can be customized according
to customer requirements stainless steel chassis, 0.75 cubic or 1
cubic)
7. Dimensions: width 1160mm × depth 600mm × height 1310 (including
feet) mm
| Working power supply | AC220V, 50Hz, ≤500W |
| Glow wire temperature | 500~1000°C±2°C continuously adjustable |
| Hot time | 0-999.9s ± 0.1s adjustable (usually 30s) |
| Light-off time | 0-999.9s ± 0.1s, automatic recording, manual suspension |
| Extinguished time | 0-999.9s±0.1s, automatic recording, manual pause |
| Thermocouple | Φ0.5mm imported armored (K type) thermocouple |
| Hot wire | Φ4 mm nickel-chromium wire |
| Hot penetration depth | 7mm ± 0.5mm |
| Sample pressure | 1N ± 0.2N |
| Test speed | 14mm/s |
How do you test a glow wire?
Glow wire testing is performed by heating an element to a pre-determined temperature. The heated element is referred to as the glow wire. The sample to
be tested is fixture in place and tissue paper is positioned
directly below the sample.
