    220V NFPA 701 Drapery Flammability Testing Equipment

    Drapery Flammability Tester for Test the Flame Retardant Properties of Hanging Fabrics

    Product introduction


    NFPA 701 is Standard Methods of Fire Tests for Flame Propagation of Textiles and Films. According to different fabric weight, divided into 1 methods and methods 2.

    Technical parameters

    1.Specified apparatus for all hanging decorative materials weighing less than 21 oz/yd² (700 g/m²).
    2.Manufactured with specified ½" marinite panels framed in stainless steel.
    3.Meker Burner with Spark ignition.
    4.Gas system include the flow meter, pressure meter and pressure reducing valve.
    5.Automatically shut the system down completely after the 45-second flame application.

    Product Feature and Application

    1.Open combustion box structure;
    2.Calcium silicate board case, stainless steel wrapped outside;
    3.Meker Burner burner;
    4.The burner is available for heat of 10,500 BUT/Hour;
    5.Automatically set 20 seconds gas release time and standard burning time;
    6.Automatic ignition ignition mode;
    7.The timer accuracy is 0.1 second;
    8.A standard sample holder is provided.

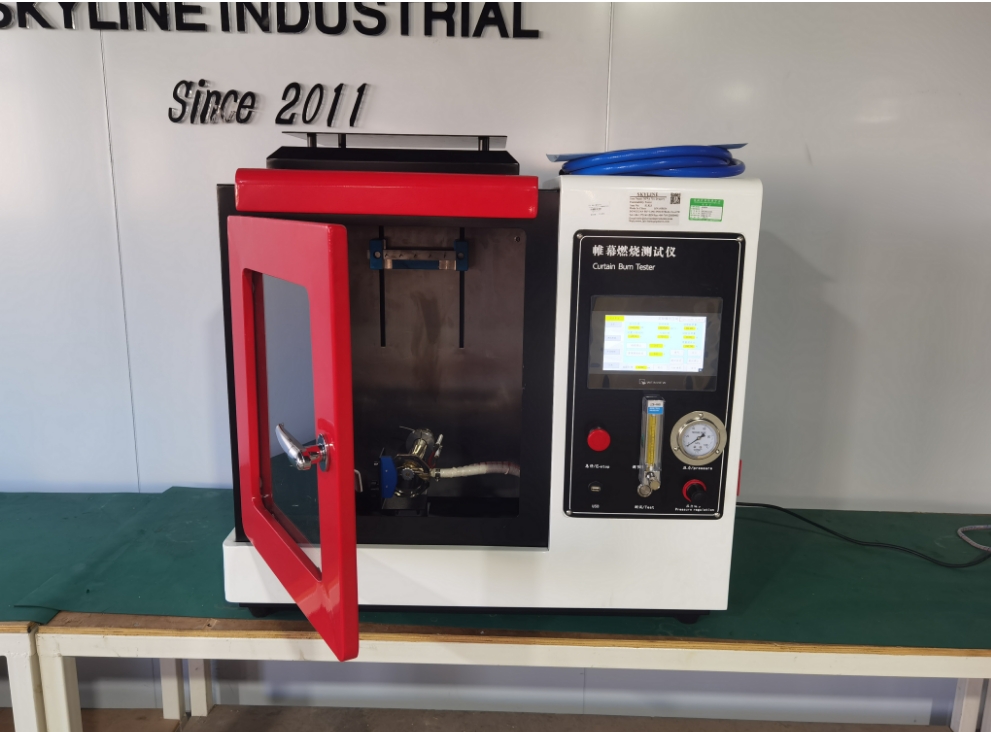

    Product Details of the Drapery Flammability Tester

    Drapery Flammability Tester, mainly used in NFPA 701 Method 1, is used to test the flame retardant properties of hanging fabrics such as curtains and curtains. Can be applied to single or multi-layer fabrics, but not to fabrics with a weight greater than 700 g/m2 (21 oz/yd2)

    Standards:NFPA 701
    Dimension:829mm (W) x 520mm x (H) x 460mm (D)
    Weight:61kg
    Installation requirements
    Power requirements: 220 V, 5 Amps
    Ambient temperature: 10 ° C to 35 ° C
    Working gas: methane


    Drapery Flammability Tester NFPA701-1.pdf
