    EN 1728 Chair Seat & Back Comprehensive Durability Tester

    Ask Lasest Price
    Brand Name : Skyline
    Model Number : SL-T16
    Certification : CE, Rosh, Calibration
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram, In Cash
    Supply Ability : 30 unit / month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

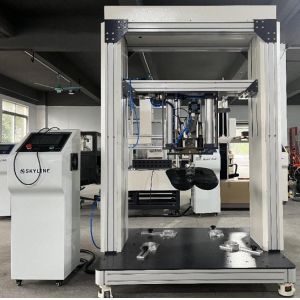

    EN 1728 Chair Seat & Back Comprehensive Durability Tester

    SL-T16 Seat & Back Comprehensive Durability Tester


    Product Introduction

    The machine is designed to test seating and back by specified load block with setting force and speed, to assess chair seating and back durability.Suitable for testing seat products, such as office chair, chair, stool, etc.


    Test Standards

    GB/T 10357.3-2013 4.3, 4.7, 4.8; QB/T 2280-2016 6.6.3, 6.6.8

    EN 1728 6.4, 6.5, 6.17, 7.3, 7.9; ISO 7173-1989; BS EN 1335-3-2009 7.2.2, 7.3.1; BS EN 581-2-2009 B.2.1.1


    Technical Parameters


    Force Actuator Height(Adjustable)500-1200mm
    Test Sample Height(Adjustable)300~600mm
    Control systemPLC, Programmable controller
    Back load5~100KG
    Seat load5~300KG
    Air Power≥0.6MPa
    Test speed(Adjustable)1~30 time /min
    Test Times(Adjustable)1~999999times

    Features

    1) Force actuator height is adjustable to suit different kinds of chair (500-1200 mm)

    2) 6 digits cycle counter for test cycle setting

    3) Force of the actuator is adjustable (Maximum force is 120 Kg)

    4) A 200 Kg force load cell to check the force applied on to the tilting back rest and the PID function of the controller can automatically fine tune the pressure.

    5) The force application angle is adjustable to suit the tilt mechanism angle of the chair. (30 to 90 degree)

    6) Test speed adjustable from 10 ~ 20 cycles per minute.

    7) Compressed air requirement: 6 bar

    8) Power : 220 volts AC , power consumption = 200W

    9) Design criteria: BIFMA.X 5.1-2011,section 5,6,15,16 and 10.
